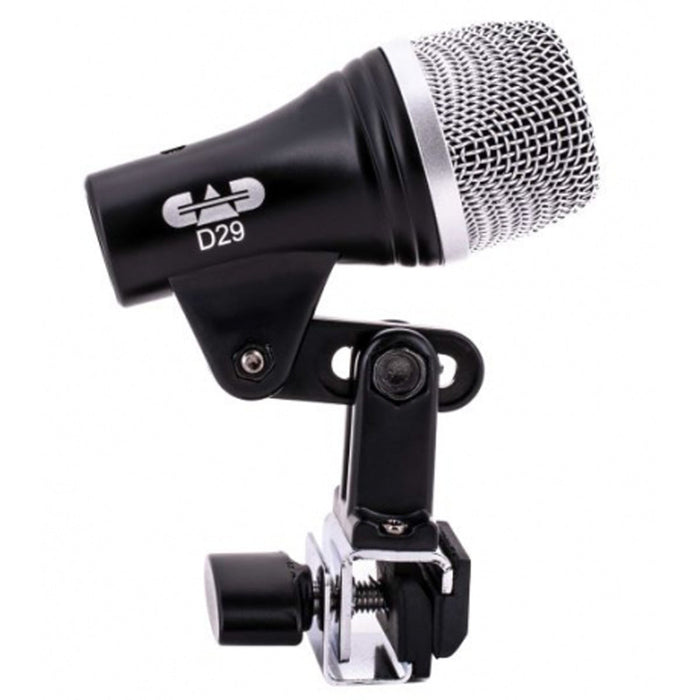

CAD Compact Dynamic Drum Microphone

The CAD D29 is a cardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of tom-tom drums and other acoustic percussive instruments. The cardioid polar pattern provides off-axis rejection crucial for on-stage clarity.

Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments. The integrated drum clip is designed to facilitate rapid, optimal placement.

Applications
• Rack toms
• Floor toms
• Guitar/bass cabinets
• Electrical and acoustic instruments

Specifications
Operating Principle: Moving-coil dynamic
Polar Pattern: Cardioid
Frequency Response: 90Hz -13KHz
Sensitivity: -53dBV (2.2mV) @ 1 Pa
Impedance: 560 ohms
Max SPL: >120dB
Dimensions: 12.7cm x 10.2cm x 7.6cm (5" x 4" x 3")
Weight: 0.22Kg (0.5lbs)
RoHS: Compliant
